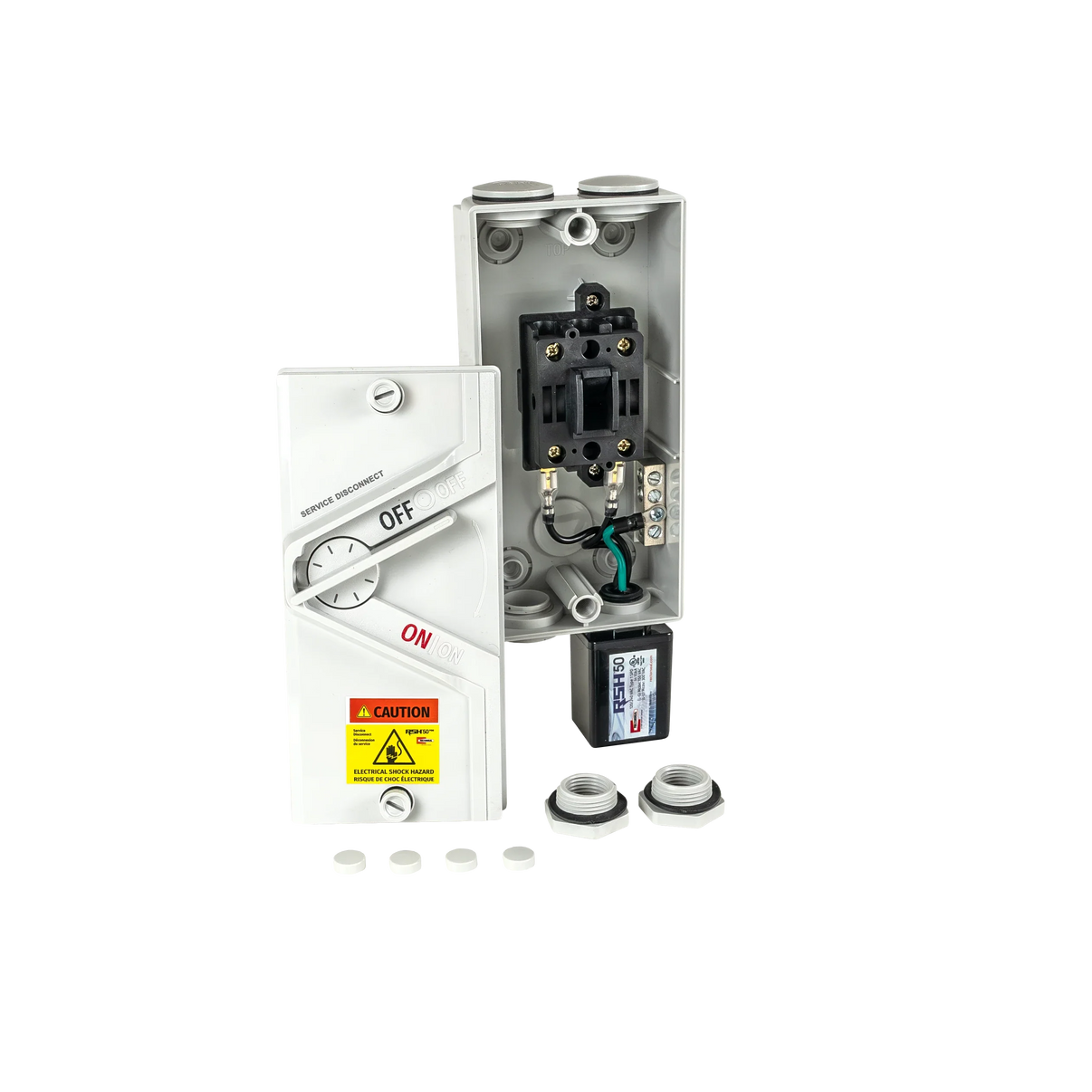

RectorSeal RSH-50 60A Non-Fused HVAC Disconnect with Built-In Surge Protection | NEMA 4X Weatherproof Disconnect Box

Professional HVAC Disconnect with Built-In Surge Protection

The RectorSeal RSH-50 60A Non-Fused HVAC Disconnect with Built-In Surge Protection combines safe electrical disconnect functionality with advanced surge protection in one contractor-grade solution. Designed for air conditioners, heat pumps, condensers, and ductless mini-split systems, this all-in-one disconnect box helps protect sensitive HVAC electronics from damaging voltage spikes, lightning strikes, and transient power surges.

Featuring a factory-installed RSH-50 Surge Protective Device, this pre-wired disconnect reduces installation time, minimizes parts inventory, and simplifies field wiring while helping maintain safe, code-compliant installations.

Two Devices. One Install. Half the Time.

Unlike traditional disconnect installations that require separate surge protection components, the RectorSeal RSH-50 PDB combines both products into one integrated unit. HVAC professionals benefit from faster installation, cleaner wiring, and improved long-term equipment protection.

• Built-In RSH-50 Surge Protection: Factory-installed surge protector helps defend HVAC systems against transient over-voltage and natural power surges.
• 60A Non-Fused Disconnect: Provides safe electrical disconnect functionality for HVAC service and maintenance applications.
• Advanced GDT & TFMOV Technology: Long-lasting hybrid Gas Discharge Tube and Thermally Fused MOV protection delivers dependable surge suppression.
• 50kA Surge Protection Capacity: Helps protect sensitive inverter boards, compressors, and HVAC electronics from damaging electrical surges.
• Exterior Disconnect Switch: Convenient outside switch operation eliminates the need for interior pull-out disconnect mechanisms for easier service access.
• NEMA 4X Weatherproof Enclosure: Heavy-duty polycarbonate enclosure provides superior waterproof protection compared to traditional metal disconnect boxes.
• IP66 Rated Protection: Weather-tight gasket design helps protect against moisture, dust, and harsh outdoor conditions.
• Impact & UV Resistant Housing: Durable polycarbonate construction designed for demanding jobsite environments.
• Pad-Lockable Safety Lockout: Can be locked in both ON and OFF positions for improved technician safety during service.
• Easy Field Installation: Includes three extra knockouts with reducers and connectors for flexible installation options.
• ETL Listed: Certified for safe, code-compliant installation in the United States and Canada.

Built for Modern Mini Splits, Heat Pumps & Air Conditioners

Today's high-efficiency HVAC systems use advanced inverter technology and sensitive control electronics that can be vulnerable to utility fluctuations and lightning-related surges. The RectorSeal RSH-50 disconnect with built-in surge protection helps reduce the risk of expensive equipment damage while providing safe and reliable disconnect access for servicing HVAC systems.

Perfect for residential and light commercial HVAC applications, including mini splits, heat pumps, condensers, and outdoor air conditioning units.

Product Specifications

• Brand: RectorSeal
• Model: RSH-50 PDB Non-Fused Disconnect with Surge Protection
• Part Number: 96433
• Product Type: Non-Fused HVAC Disconnect Box with Surge Protection
• Amperage: 60A
• Voltage Compatibility: Single-Phase 120/240V
• Surge Capacity: Up to 50,000-Amp Single Surges
• Repetitive Surge Capacity: Up to 10,000-Amp Repetitive Surges
• Protection Technology: Hybrid Gas Discharge Tube (GDT) & Thermally Fused MOV (TFMOV)
• Enclosure Rating: NEMA 4X / IP66
• Housing Material: UV & Impact Resistant Polycarbonate
• Switch Type: Exterior Operated Non-Fused Disconnect
• Certification: ETL US & C Listed
• Application: Air Conditioners, Heat Pumps, Mini Splits, Condensing Units, HVAC Systems

Triple-Layer Warranty Protection

The RectorSeal RSH-50 PDB is backed by multiple levels of protection, including a 3-year disconnect box warranty, 5-year/$5,000 downline equipment coverage, and a limited-lifetime replacement warranty on the RSH-50 surge protection device.

Professional HVAC Protection Without the Contractor Markup

Get contractor-grade HVAC disconnects and integrated surge protection trusted by installers nationwide. The RectorSeal RSH-50 PDB delivers reliable weatherproof performance, simplified installation, and advanced surge protection for today’s sensitive HVAC systems.
