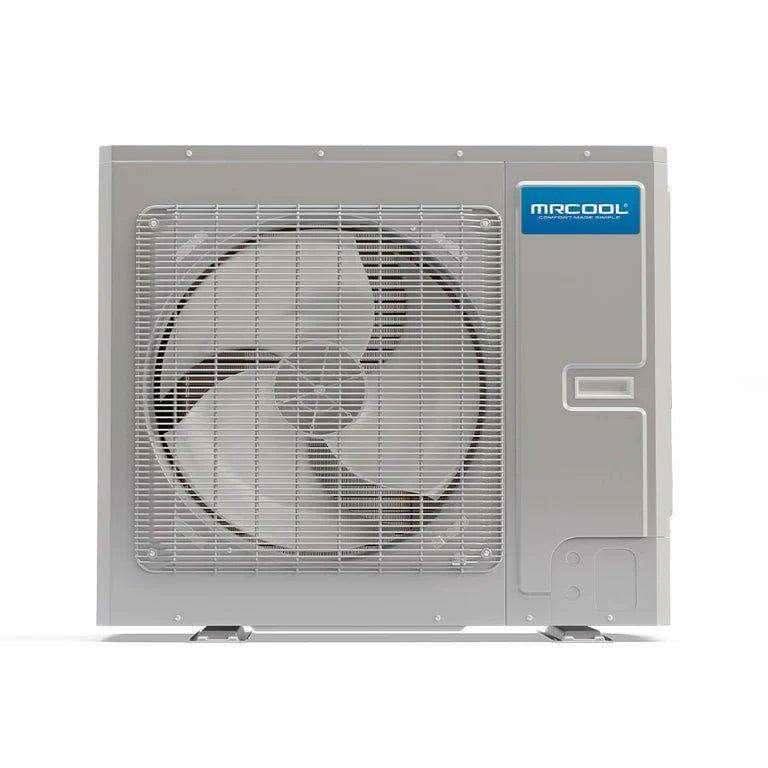

Universal Series 2 or 3 Ton DC Inverter Cooling Only Condenser, MDUCO18024036
Regular Price
$1,984.00
Press & drag to view
The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 20 SEER rating.
Key Features
- Up to 20 SEER in 2 Ton Mode, Up to 18 SEER in 3 Ton Mode
- Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty
Specifications & Dimensions
| Product Dimensions | 37"W x 18-1/8"D x 32-1/4"H |
| Product Weight | 185.2 lbs |
| SEER | 20 in 2 Ton Mode 18 in 3 Ton Mode |
| EER | 12.5 in 2 Ton Mode 12.2 in 3 Ton mode |
| CFM | 3,000 in 3 Ton Mode 34,70 in 4 Ton Mode |
| Tonnage | 2-3 Ton |
| Cooling Capacity | 24,000, 36,000 BTU |
| Electrical Requirements | Requires a minimum of 208V-230V/60HZ/24A-35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 A |
| Min Circuit Ampacity | 24 A |
| Color | Gray |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 118.24 oz |
| Decibel Rating | 55-57 dBA |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4in |
| Certifications | ETL AHRI |
| Warranty | 10 Year Limited Warranty |
