MRCOOL DIY Mini Split - 45,000 BTU 5 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM548HPC00C210
Regular Price
$9,963.00
Press & drag to view

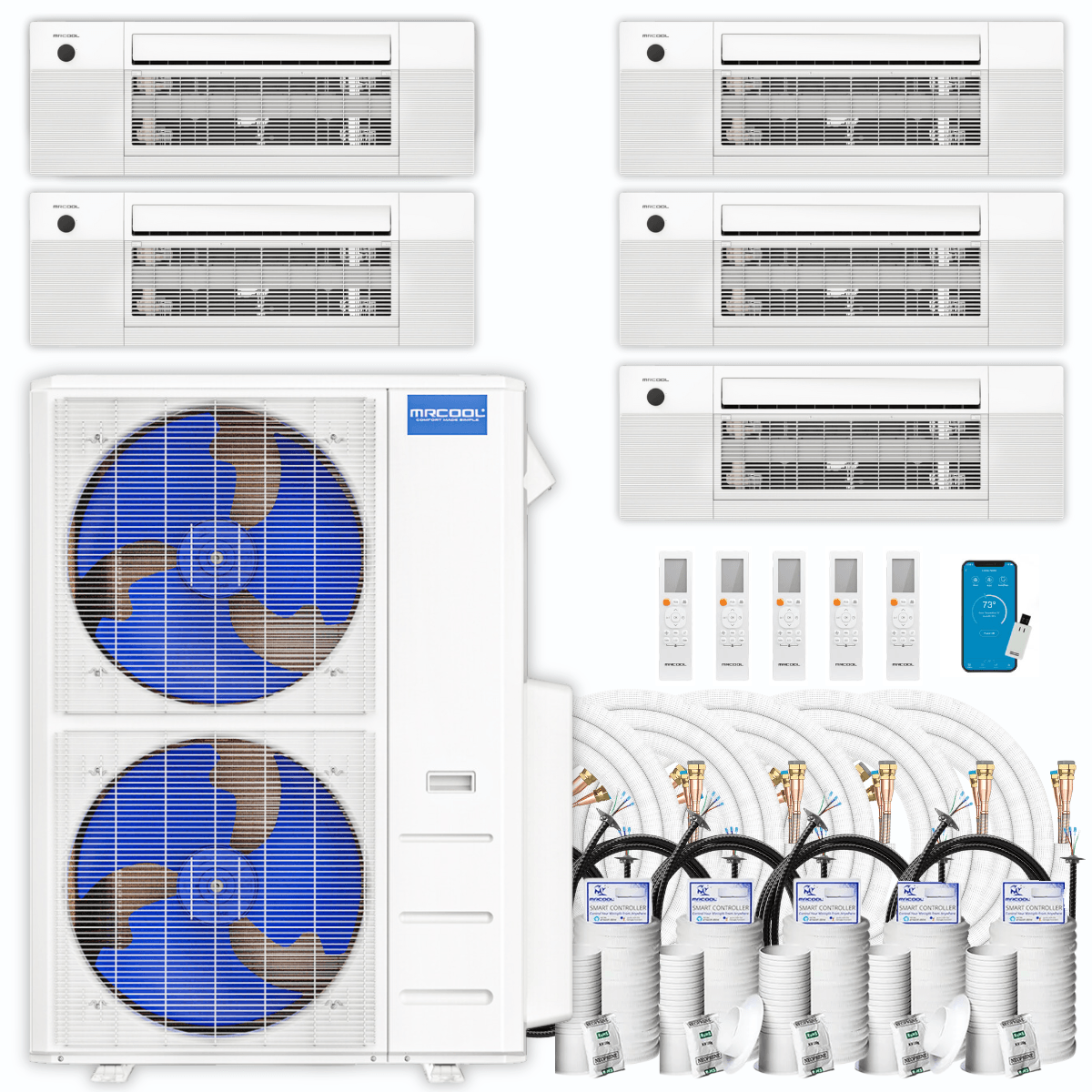

This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, five 9,000 BTU Ceiling Cassette Air Handler,
five 25' Linesets, and
five Remotes. The best part about all of this is that you can install it yourself!
Package Includes
- MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
- MRCOOL DIY Series 9K BTU Ceiling Cassette, DIYCASSETTE09HP-230C25 (x5)
- MRCOOL 25ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 (x5)
Condenser
- Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive
- 20.5 SEER efficiency rating.
- Works In All Environments. The
- capability to continue to deliver heating performance when temperatures reach
- 5°F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 9K BTU, Quantity 5
- Large Coverage Area. Handler covers an area up to
- 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
- Worry-Free Installation. Easily install between all types of joists on 16' center - including pre-manufactured I-joists
- Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.
Line Set 25 ft., Quantity 5
- Pre-Charged. These copper line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
PRODUCT SPECIFICATIONS:
Condenser
| Product Dimensions | 37.48'W x 16.34'D x 52.48'H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | 5F ~ 75.2F |
| SEER | 20.5 |
| EER | 11 |
| Voltage | Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 50.31'W x 13.19'D x 8.98'H |
| Mount Type | Ceiling Cassette |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes |
Auto - Auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
| Length |
25 Feet
|
| Liquid Line Size | 1/4' |
| Suction Line Size | 1/2' |
