MRCOOL DIY Mini Split - 48,000 BTU 5 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-548HP0909090912
Regular Price
$8,795.00
Press & drag to view

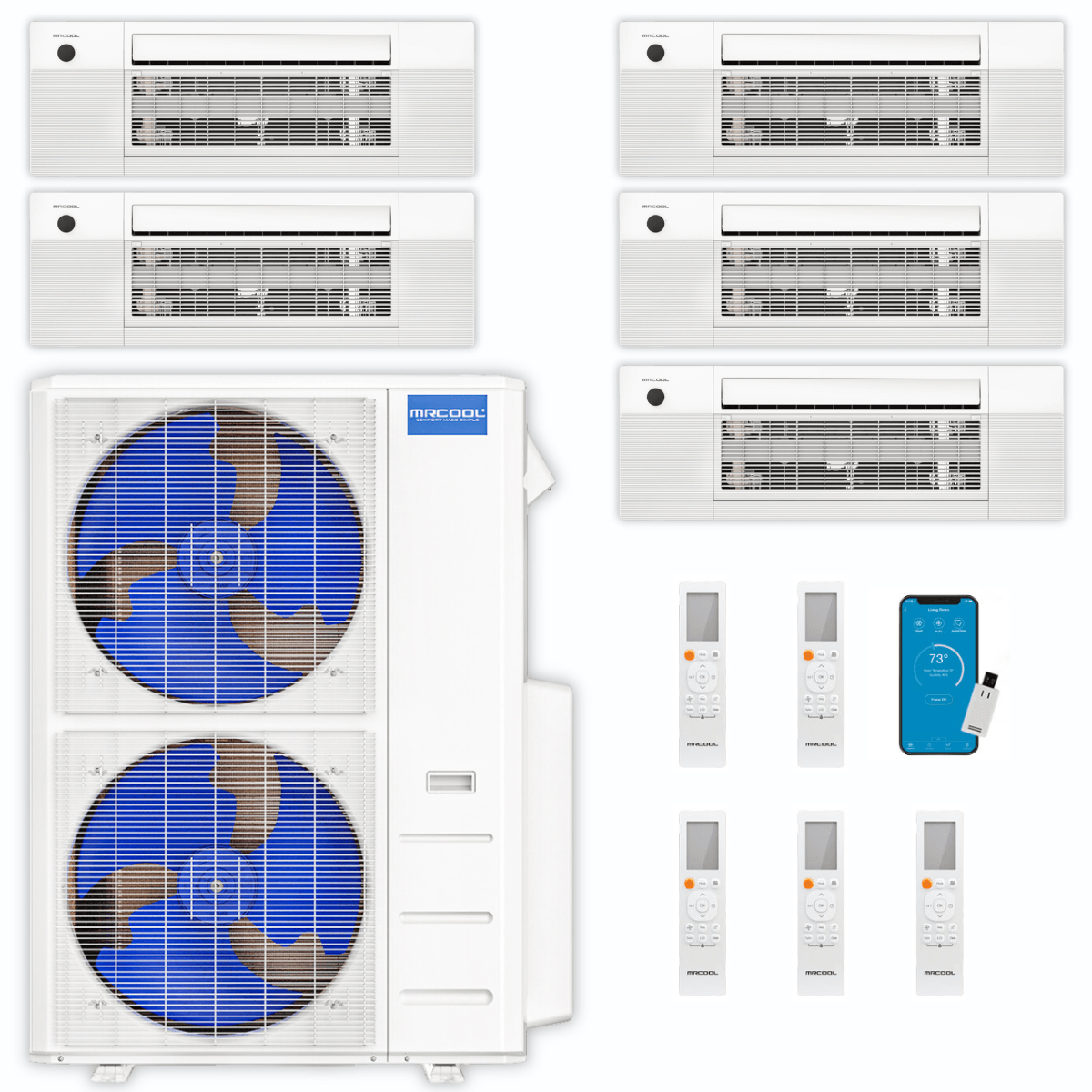

This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, four 9,000 BTU Ceiling Cassette Air Handler, one 12,000 BTU Ceiling Cassette Air Handler and five Remotes. The best part about all of this is that you can install it yourself!
Package Includes
- MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
- MRCOOL DIY Series 9K BTU Ceiling Cassette, DIYCASSETTE09HP-230C25 (x4)
- MRCOOL DIY Series 12K BTU Ceiling Cassette, DIYCASSETTE12HP-230C25
This package does not include linesets, don't forgot to scroll up and add them!
Condenser
- Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive
- 20.5 SEER efficiency rating.
- Works In All Environments. The
- capability to continue to deliver heating performance when temperatures reach
- 5°F.
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 9K BTU, Quantity 4
- Large Coverage Area. Handler covers an area up to
- 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
- Worry-Free Installation. Easily install between all types of joists on 16' center - including pre-manufactured I-joists
- Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.
Air Handler, 12K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to
- 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
- Worry-Free Installation. Easily install between all types of joists on 16' center - including pre-manufactured I-joists
- Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.
Specification & Dimensions
Condenser
| Product Dimensions |
|
| Cooling Capacity |
|
| Heating Capacity |
|
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range |
|
| SEER | 20.5 |
| EER | 11 |
| Voltage |
|
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 50.31'W x 13.19'D x 8.98'H |
| Mount Type | Ceiling Cassette |
| Cooling Capacity |
|
| Heating Capacity |
|
| Registered Warranty | 5 Years Parts |
| Modes |
Auto - Auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 12K BTU
| Product Dimensions | 50.31'W x 13.19'D x 8.98'H |
| Mount Type | Ceiling Cassette |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity |
|
| Registered Warranty |
|
| Modes |
Auto - Auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
